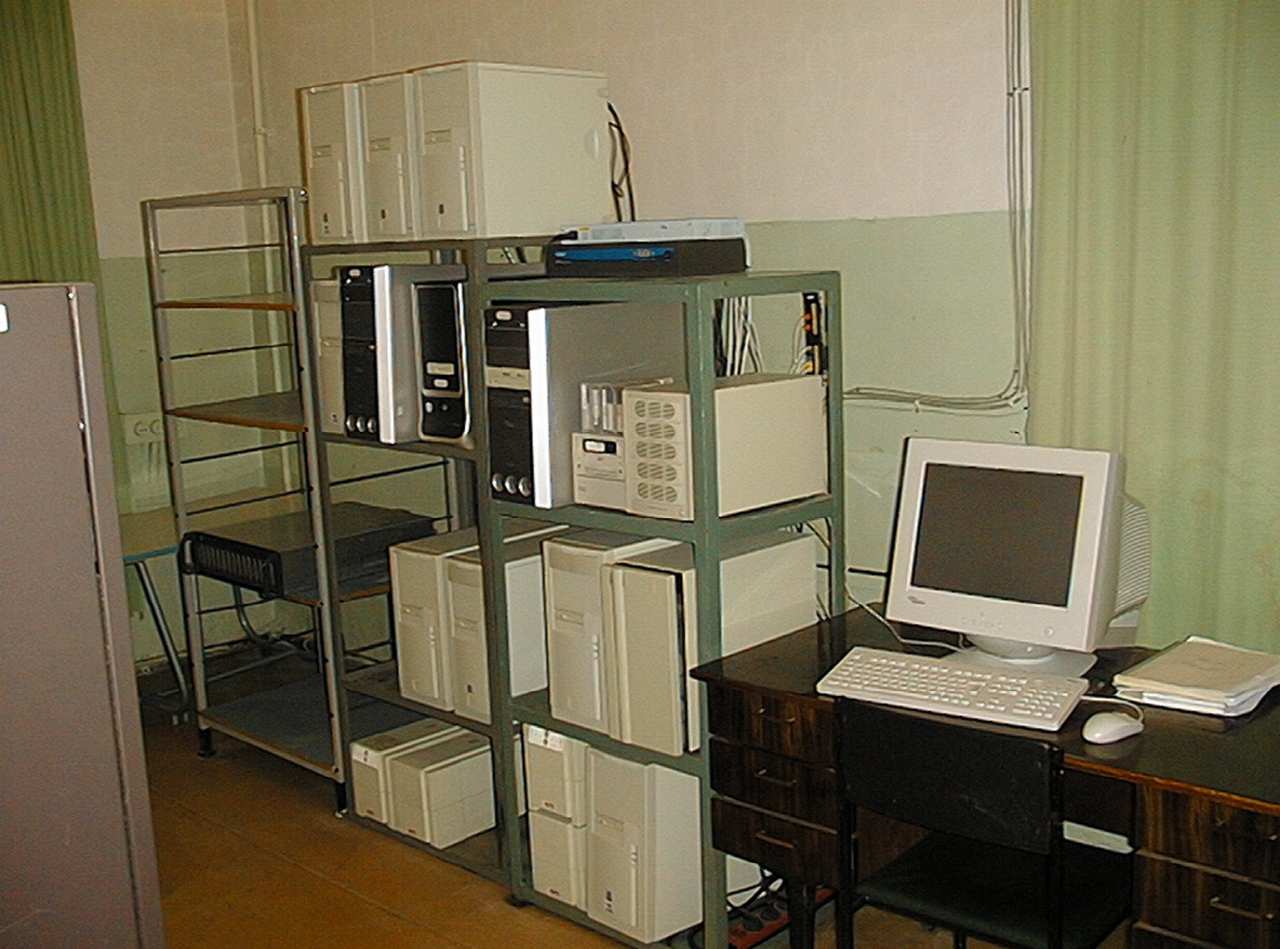

The farm picture (24 November 2005) could be seen here (jpg,100KB).
1 - pcfarm - Fujitsu Siemens Computers Celsius R610 Workstation Mini-Tower:
- D1357, iE7505 Chipset,
- Dual CPU Intel Xeon 2,40 GHz (533 MHz/HT), 512 KB cache,
- 4 dual-chanell PC2100(266 MHz) ECC slots up to 4 GB,
- 4*512 MB ECC,
- 1 64-bit, 133 MHz, PCI-X
- 2 64-bit, 100 MHz, PCI-X
- 2 Ethernet:
1. int., Intel Pro/1000 MT Desktop, 82540EM,
Intel(R) PRO/1000 Network Driver - version 5.2.30.1
HEPD LAN, 1 VLAN, pcfarm
2. ext., 3Com 3C996B Gigabit Server NIC, slot PCI-X, 133MHz, 64-bit
Broadcom Gigabit Ethernet Driver bcm5700
with Broadcom NIC Extension (NICE) ver. 7.1.22 (01/07/04)
int. pcfarm LAN, 2 VLAN, pcfarm-01
- 1 Ultra160 SCSI, ext. Adaptec 29160, slot PCI-X, 100MHz, 64-bit
SCSI0:
1 disk 36 GB, Ultra160, IBM 36LZX, DDYS-T36950N, 10000 RPM, ext. 1 box
1 disk 36 GB, Ultra160, Seagate 36LP, ST336704LWV, 10000 RPM, ext. 1 box
1 disk 36 GB, Ultra160, Seagate 36ES, ST336737LW, 7200 RPM, ext. 1 box
1 disk 73 GB, Ultra160, Seagate 73LP, ST373405LW, 10000 RPM, ext. 1 box
1 tape Ultra2 Wide, Quantum DLT 8000, ext.
- 1 Ultra320 SCSI, int. Adaptec AIC7902 dual-channel, PCI-X, 100 MHz
SCSI1:
1 HDD 146 GB Ultra320 SCSI, Seagate, ST3146807LW, 10000 RPM, int., system
1 HDD 146 GB Ultra320 SCSI, Seagate, ST3146807LW, 10000 RPM, ext. 2 box
1 HDD 146 GB Ultra320 SCSI, Seagate, ST3146807LW, 10000 RPM, ext. 2 box
1 HDD 146 GB Ultra320 SCSI, Seagate, ST3146807LW, 10000 RPM, ext. 2 box
1 HDD 146 GB Ultra320 SCSI, Seagate, ST3146807LW, 10000 RPM, ext. 2 box
SCSI2:
1 Promise Vtrak15100 Raid 5, 15 SATA disk 200 GB Seagate, 2*1,1 TB
- 1 CD-ROM, 48x, IDE, int.
2,12 - pcfarm-02, pcfarm-12
- Istwind ATX Desktop Mini-Tower:
- Intel D915GEV, i915G Chipset,
- CPU Intel P-4 530E 3,00 GHz (800 MHz/HT) 1024KB cache, LGA775, 0.09
- 4 DIMM slots dual-channel DDR2 400/533 MHz up to 4GB,
- 2*512 MB non-ECC,
- 1 Ethernet, int., Gigabit Marvell Yukon 88E8050, int. pcfarm VLAN
- 1 HDD SATA IDE, Seagate 80GB, 7200 RPM,ST380013AS
4 - pcfarm-04 - Istwind ATX Desktop Mini-Tower:
- Intel D925XECV2, i925XE Chipset,
- CPU Intel P-4 650 3,40 GHz (800 MHz/HT) 2048 KB cache, LGA775, 0.09,
- 4 DIMM slots dual-channel DDR2 400/533 MHz up to 4GB,
- 2*1024 MB non-ECC,
- 1 Ethernet, int., Gigabit Marvell Yukon 88E8050, int. pcfarm VLAN
- 1 HDD SATA IDE, Seagate 160 GB, 7200 RPM,ST3160827AS
5,6,7 - pcfarm-05, pcfarm-06, pcfarm-07
- Istwind ATX Desktop Mini-Tower:
- ASUS P4G8X, iE7205 Chipset,
- CPU Intel P-4 2,66 GHz (533 MHz), 512 KB cache,
- 4 dual-chanell DDR DIMM 266 MHz slots up to 4 GB,
- 2*256 MB non-ECC,
- 1 Ethernet, ext., Intel Pro/1000 MT Desktop, 82540EM,
- 1 HDD ATA/100, Seagate 60 GB, 7200 RPM, ATA 5
8,9,10 - pcfarm-08, pcfarm-09, pcfarm-10
- Istwind ATX Desktop Mini-Tower:
- ASUS P4T533, i850E Chipset,
- CPU Intel P-4 2,66 GHz (533 MHz), 512 KB cache,
- 2 232-pin 32-bit RIMM4200(1066 MHz) slots up to 2 GB,
- 1*256 MB,
- 1 Ethernet, ext., Intel Pro/1000 MT Desktop, 82540EM,
- 1 HDD ATA/100, Seagate 60 GB, 7200 RPM, ATA 5
11 - pcfarm-11
- Fujitsu Siemens Computers Celsius R610 Workstation Mini-Tower:
- D1357, iE7505 Chipset,
- Dual CPU Intel Xeon 2,40 GHz (533 MHz/HT), 512 KB cache,
- 4 dual-chanell PC2100(266 MHz) ECC slots up to 4 GB,
- 4*256 MB,
- 1 Ethernet, int., Intel Pro/1000 MT Desktop, 82540EM,
- 1 Ultra320 SCSI, int. Adaptec AIC7902 dual-channel,
- 1 HDD 73 GB Ultra320 SCSI, Seagate, ST373307LW, 10000 RPM
8 ports 3Com SS-3 Baseline 8 port Gigabit Switch, 3C164177
6 ports 3Com SS-3 Switsh 3226, 24 port 10/100, 2 10/100/1000, 3CR17500-91
- 1 port HEPD LAN, VLAN 1
- 1,3,4,5,6,25 ports int. pcfarm, VLAN 2
dual APC Smart UPS 2000:
1 UPS - pcfarm-01 main (pcfarm-06, ..., pcfarm-11, Gigabit Switch, HDD boxs)
2 UPS - pcfarm-05 main (pcfarm-02, pcfarm-04, pcfarm-12)
Monitor 17", keyboard, mouse
16 port OSD KVM switch (keyboard, video and mouse) EDIMAX
Total node computers MHz (pcfarm-02, pcfarm-04, ..., pcfarm-12)
- 3.000+3.400+2.660*6+2.400*2+3.000=30.160 GHz
Total main computer MHz (pcfarm) - 2.400*2=4.800 GHz
In sum (all computers) = 30.160 GHz + 4.800 GHz = 34.960 GHz
Total HDD main computer capacity - 146*5+36*3+73+1100*2=3111 GB
Data on the hardware from the program Memtest-86+ v1.30
Throughput
+------------- MB/sec --------------+
Cache L1 Cache L2 RAM CPU Chipset
pcfarm 19664(8KB) 14718(512KB) 1378(2GB) 2*Xeon/2400/533/HT iE7505
pcfarm-02 20977(16KB) 18403(1015KB) 2603(1GB) P-4/3000/800/HT i915G
pcfarm-04 23774(16KB) 18477(2048KB) 3019(2GB) P-4/3400/800/HT i925XE
pcfarm-05 21856(8KB) 18646(512KB) 1352(512MB) P-4/2660/533 iE7205
pcfarm-06 21856(8KB) 18646(512KB) 1352(512MB) P-4/2660/533 iE7205
pcfarm-07 21856(8KB) 18646(512KB) 1352(512MB) P-4/2660/533 iE7205
pcfarm-08 21905(8KB) 18688(512KB) 1535(256MB) P-4/2660/533 i850E
pcfarm-09 21905(8KB) 18688(512KB) 1535(256MB) P-4/2660/533 i850E
pcfarm-10 21905(8KB) 18688(512KB) 1535(256MB) P-4/2660/533 i850E
pcfarm-11 19664(8KB) 14718(512KB) 1378(1GB) 2*Xeon/2400/533/HT iE7505
pcfarm-12 20977(16KB) 18403(1015KB) 2603(1GB) P-4/3000/800/HT i915G
